Description

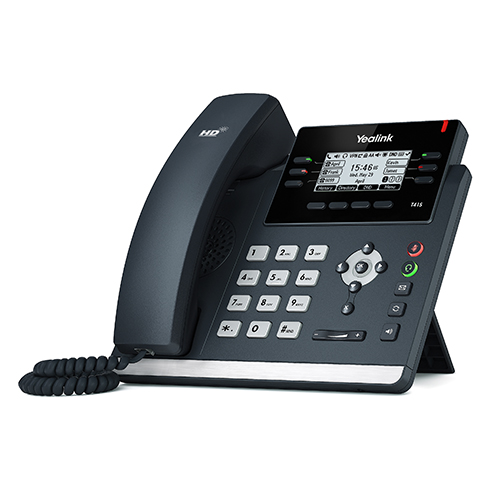

The SIP-T41S is a feature-rich business tool for superior communications and extended functionality. It offers a faster, more-responsive interface than the T41P and several performance-enhancing functions. It’s a six-line IP phone that comes with built-in programmable keys to enhance productivity. The SIP-T41S with Yealink Optima HD Voice technology and wideband codec of Opus delivers superb audio quality and crystal clear voice communications. With an all-new USB port, the SIP-T41S boasts unparalleled functionality and expansibility with Bluetooth, Wi-Fi and USB recording features.

Features:

• 2.7″ 192×64-pixel graphical LCD with backlight
• Opus* codec support
• USB 2.0
• T4S Auto-P template unified
• T4S firmware unified
• Up to 6 SIP accounts
• PoE support
• Paperless label design
• Headset, EHS support
• Integrated stand with 2 adjustable angles
• Wall mountable

Specification

Audio features:

• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Wideband codec: Opus*, G.722
• Narrowband codec: Opus*, G.711(A/µ), G.723.1, G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features:

• 6 VoIP accounts
• One-touch speed dial, redial
• Call forward, call waiting
• Call transfer, call hold
• Call return, group listening
• Mute, auto answer, DND
• 3-way conference call
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Hotline, emergency call
• Set date time manually or automatically
• Dial Plan, XML Browser, Action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• USB port (2.0 compliant)
• Bluetooth earphone through BT40,
• Wi-Fi through WF40,
• USB call recording through USB flash drive
• Enhanced DSS key

Directory:

• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features:

• Busy Lamp Field (BLF)
• Bridged Line Apperance (BLA)
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating
• Call park, call pickup
• Executive and Assistant
• Centralized call recording
• Visual voice mail
• Call recording

Display and Indicator:

• 2.7″ 192×64-pixel graphical LCD with backlight
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status information
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Power saving

Feature Keys:

• 6 line keys with LED
• 6 line keys can be programmed up to 15 paperless DSS keys (3-page view)
• 5 features keys: message, headset, mute, redial, hands-free speakerphone
• 4 context-sensitive “soft” keys
• 6 navigation keys
• 2 volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key

Interface:

• 2 x RJ45 10/100M Ethernet ports
• Power over Ethernet (IEEE 802.3af), Class 2
• 1 x USB port (2.0 compliant)
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
• 1 x RJ12 (6P6C) EHS port

Other Physical Features:

• Stand with 2 adjustable angles
• Wall mountable
• External Yealink AC adapter (optional)：AC 100~240V input and DC 5V/1.2A output
• Power consumption (PSU): 1.25-5.1W
• Power consumption (PoE): 1.72-6.73W
• Dimension (W*D*H*T): 212mm*189mm*175mm*54mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C

Management:

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Broadsoft device management
• Zero-sp-touch TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Network and Security:

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE

Package Features:

• Yealink SIP-T41S IP phone
• Handset with handset cord
• Ethernet Cable (2m CAT5E UTP Cable)
• Stand
• Quick Start Guide
• Power Adapter (Optional)
• Wall Mount Bracket (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 6.3 kg
• G.W/CTN: 7.0 kg
• Giftbox size: 246mm*223mm*120mm
