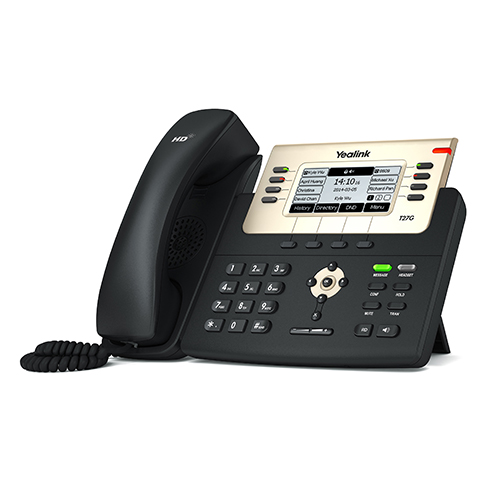

VoIP phone Yealink SIP-T27G
With faster response on the phone’s user interface and better device performance, the SIP-T27G IP phone, as the upgraded product of T27P, is Yealink’s latest feature-rich tool unifying superior voice capabilities and increased function extension capability for business. Yealink Optima HD technology and wideband codec of Opus deliver a superb sound quality and bring you a life-like voice communications. With an all-new USB port, the SIP-T27G boasts unparalleled functionality and expansibility with Bluetooth, Wi-Fi and USB recording features.Seamlessly migrated to GigE-based network infrastructure, SIP-T27G IP phone is also built with the Gigabit Ethernet facilitating very rapidly call handling. By using standard encryption protocols, the SIP-T27G performs highly secure remote provisioning and software upgrades.
Features
- Yealink Optima HD voice
- 3.66″ 240×120-pixel graphical LCD with backlight
- Gigabit
- USB 2.0
- Opus* codec support
- Up to 6 SIP accounts
- Paper label free design
- PoE support
- Headset, EHS support
- Supports expansion modules
Specification
Audio Features
- HD voice: HD handset, HD speaker
- Wideband codec: Opus*, G.722
- Narrowband codec: Opus*, G.711(A/µ), G.723.1, G.729, G.729AB, G.726, iLBC
- DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
- Full-duplex hands-free speakerphone with AEC
- VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
6 VoIP accounts
One-touch speed dial, redial
Call forward, call waiting
Call transfer, call hold
Call return, group listening
Mute, auto answer, DND
3-way conference call
Direct IP call without SIP proxy
Ring tone selection/import/delete
Hotline, emergency call
Set date time manually or automatically
Dial plan, XML Browser, Action URL/URI
Integrated Screenshots
RTCP-XR
USB port (2.0 compliant) Bluetooth earphone through BT40, Wi-Fi through WF40, USB call recording through USB flash drive
Enhanced DSS key
Directory
- Local phonebook up to 1000 entries
- Black list
- XML/LDAP remote phonebook
- Intelligent search method
- Phonebook search/import/export
- Call history: dialed/received/missed/forwarded
IP-PBX Features
- Busy Lamp Field (BLF)
- Bridged Line Apperance (BLA)
- Anonymous call, anonymous call rejection
- Hot-desking, voice mail
- Flexible seating
- Call park, call pickup
- Executive and Assistant
- Centralized call recording
- Visual voice mail
Display and Indicator
- 3.66″ 240×120-pixel graphical LCD with backlight
- LED for call and message waiting indication
- Dual-color (red or green) illuminated LEDs for line status information
- Intuitive user interface with icons and soft keys
- Multilingual user interface
- Caller ID with name and number
- Power saving
Feature keys
- 8 line keys with LED
- 8 line keys can be programmed up to 21 paperless DSS keys (3-page view)
- 8 features keys: message, headset, conference, mute, hold, transfer, redial, hands-free speakerphone
- 4 context-sensitive “soft” keys
- 6 navigation keys
- 2 volume control keys
- Illuminated message key
- Illuminated headset key
Interface
- Dual-port Gigabit Ethernet
- Power over Ethernet (IEEE 802.3af), Class 3
- 1 x USB port (2.0 compliant)
- 1 x RJ9 (4P4C) handset port
- 1 x RJ9 (4P4C) headset port
- 1 x RJ12 (6P6C) EHS port
- 1 x RJ12 (6P6C) EXT port: Supports up to 6 Expansion Modules
Other Physical Features
- Stand with 2 adjustable angles
- Wall mountable
- External Yealink AC adapter (optional)： AC 100~240V input and DC 5V/1.2A output
- Power consumption (PSU): 1.44～3.47W
- Power consumption (PoE): 1.72～7.07W
- Dimension (W*D*H*T): 265mm x 210mm x 170.5mm x 53.5mm
- Operating humidity: 10-95%
- Operating temperature: -10~50°C
Management
- Configuration: browser/phone/auto-provision
- Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
- Auto-provision with PnP
- Zero-sp-touch, TR-069
- Phone lock for personal privacy protection
- Reset to factory, reboot
- Package tracing export, system log
Network and Security
- SIP v1 (RFC2543), v2 (RFC3261)
- Call server redundancy supported
- NAT traversal: STUN mode
- Proxy mode and peer-to-peer SIP link mode
- IP assignment: static/DHCP
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- UDP/TCP/DNS-SRV(RFC 3263)
- QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
- SRTP for voice
- Transport Layer Security (TLS)
- HTTPS certificate manager
- AES encryption for configuration file
- Digest authentication using MD5/MD5-sess
- OpenVPN, IEEE802.1X
- IPv6
- LLDP/CDP/DHCP VLAN
- ICE
Package Features
Package content:
- Yealink SIP-T27G IP phone
- Handset with handset cord
- Ethernet Cable (1.5m CAT5E UTP Cable)
- Stand
- Quick Start Guide
- Power Adapter (Optional)
- Wall Mount Bracket (Optional)
Qty/CTN: 5 PCS
N.W/CTN: 6.6 kg
G.W/CTN: 7.4 kg
Giftbox size: 295mm x 224mm x 115mm
Carton Meas: 602mm x 308mm x 236mm
