Description

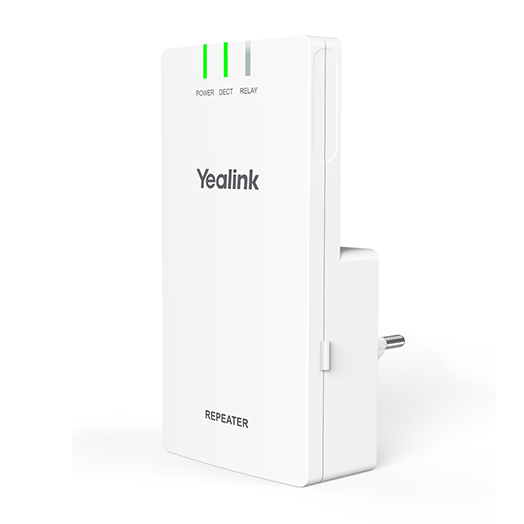

Yealink DECT repeater RT20 can be deployed to extend the DECT radio coverage of Yealink W52P/W56P base stations significantly in all directions. Signals with clear status LED display, slim design and easy plug-and-play installation are typically suitable to be used in the ambiance of modern business environments and homes.
Note: RT20 only applies to EU version adapter, frequency: 1880-1900MHz

Features
• Compatible with DECT GAP
• Plug & play setup
• Auto association
• Star connection (max 5)
• Clear status LED display
• Slim Design

Specification:
General features
• Standards: DECT GAP
• Extending the DECT coverage
• Supports automatic handover of calls between RT20
• Up to 2 simultaneous calls per handset
• Up to 5 repeaters per base station
• Auto association
• Tact switch for Base Link Reset
• LED Display
– LED 1 Power On
– LED 2 DECT Link
– LED 3 Active Relay
Frequency/Coverage
• Indoor range up to 50m
• Outdoor range up to 300m
• 2 internal QWL omnidirectional antennas
• Modulation: GFSK
• Speech coding: 32kbit/s G.726, 64kbit/s G.722
• Radio frequency range: 1880 MHz to 1900 MHz
• Transmission power: Average 10mW
• RX sensitivity: typ. -91dBm
Physical Features
• Package content: RT20, User Guide
• Cabinet color: white
• Power supply: 100 – 240V AC, 50/60Hz
• Operating conditions: 0°C to +45°C
• Dimension (W*H*T): 122mm*62mm*12mm
• Weight: 107 g
Package Features
• Qty/CTN: 40 PCS
• Giftbox size: 150mm*90mm*80mm
• Carton Meas: 420mm*380mm*320mm
